The automatic brake system can detect the parameter such as the wind speed, DC Output Voltage of the system and the switch signal to control the status of brake on and brake off. Besides, the control system can also detect the switch failure of brake and brake-off. It alarms in case of failure. The all-directions control strategy will guarantee the safe operation of wind turbine, controller and inverter.

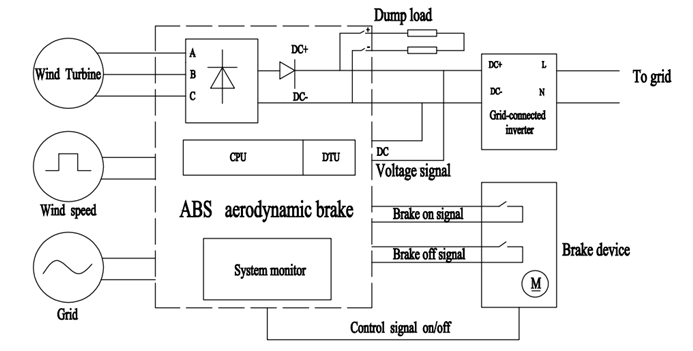

System Diagram:
